High-speed, high-precision injection molding machine YDW-HF288
Classification:
The company focuses on the development and development of injection molding machines required by enterprises in the thin-walled industry. In the past four years, Yadiwei HF series multi-model machines have been launched, which are widely used in the production of fast food boxes and milk tea cups. The products are sold in Sichuan, Guizhou, Anhui, Hebei, Guangdong, Guangxi and other provinces.
Keywords: high-speed precision injection molding machine
Product Details

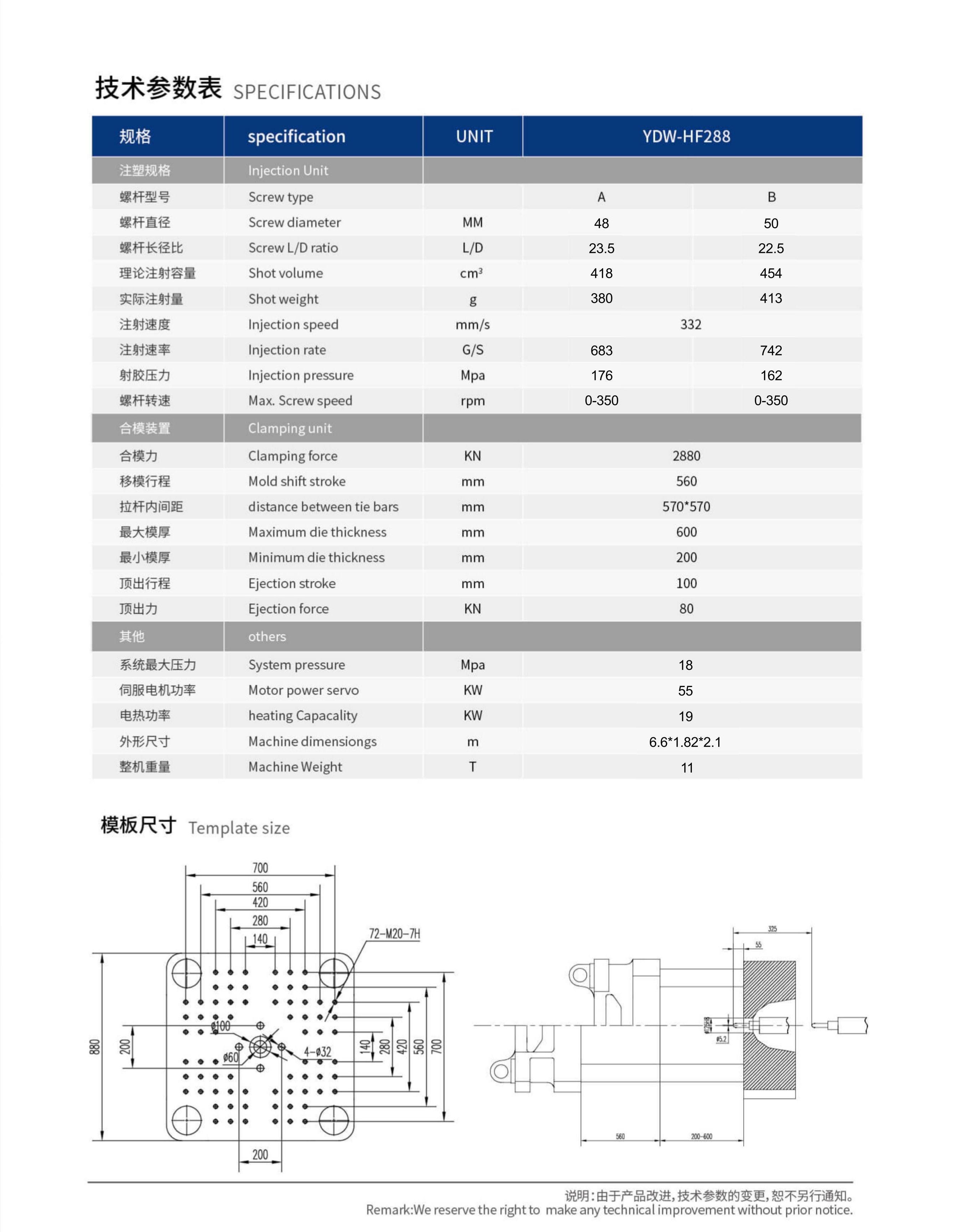

Injection device
| Screw type | A | B | |
| Screw diameter | MM | 48 | 50 |
| Screw L/D ratio | L/D | 23.5 | 22.5 |
| Shot volume | cubic centimeter | 418 | 454 |
| Shot weight | g | 380 | 413 |
| Injection speed | mm/s | 347 | |
| Injection rate | G/S | 571 | 620 |
| Injection pressure | Mpa | 176 | 162 |
| Max. Screw Speed | revolutions per minute | 0-350 | 0-350 |
Molding unit
| Clamping force | KN | 2880 |
| Mold shift stroke | mm | 560 |
| distance between tie bars | mm | 570*570 |
| Maximum die thickness | mm | 600 |
| Minimum die thickness | mm | 200 |
| Ejection stroke | mm | 100 |
| Ejection force | KN | 80 |
Other
| System pressure | Mpa | 18 |
| Servo motor power | Keyword | 55 |
| Heating Capacity | Keyword | 19 |
| Machine dimensions | m | 6.6*1.82*2.1 |
Template Size
